System Overview #

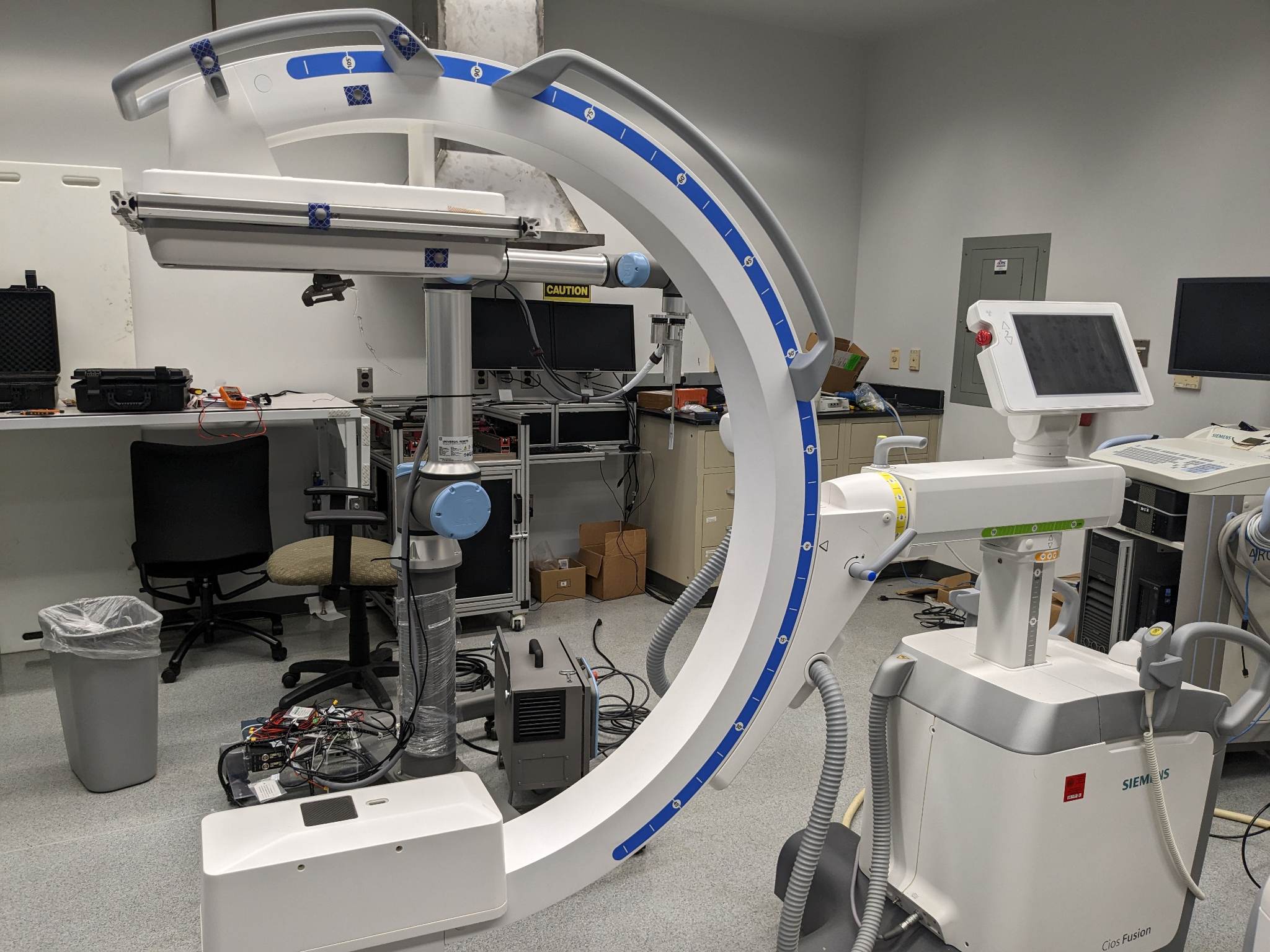

• C-arm system with flat detector

• C-arm monitor

Position Adjustment #

• C-arm system

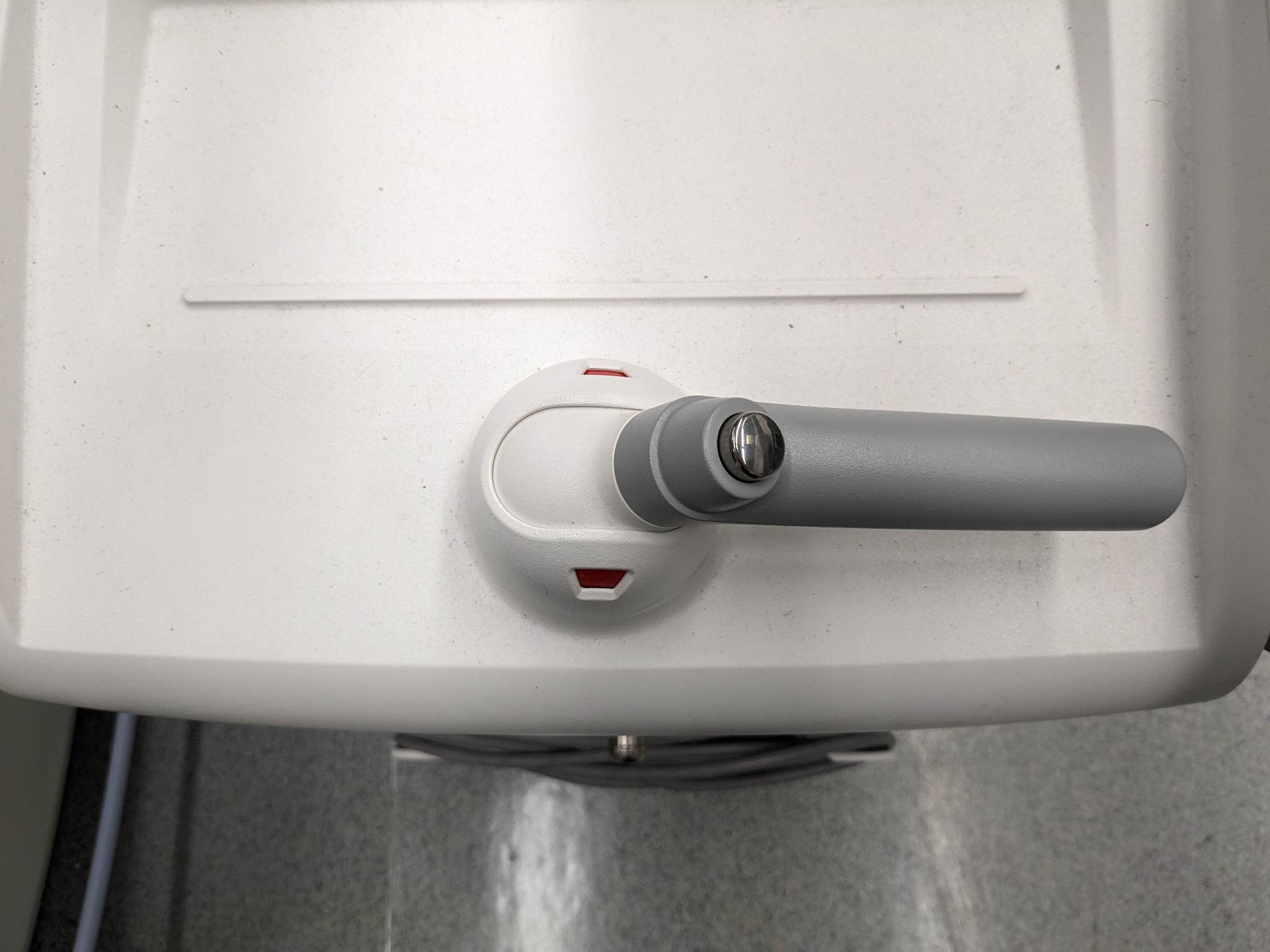

  • To adjust the parking position of the C-arm system, you need to adjust the breaks as shown in the image below. The C-arm system is locked when the indicator on the break is red.

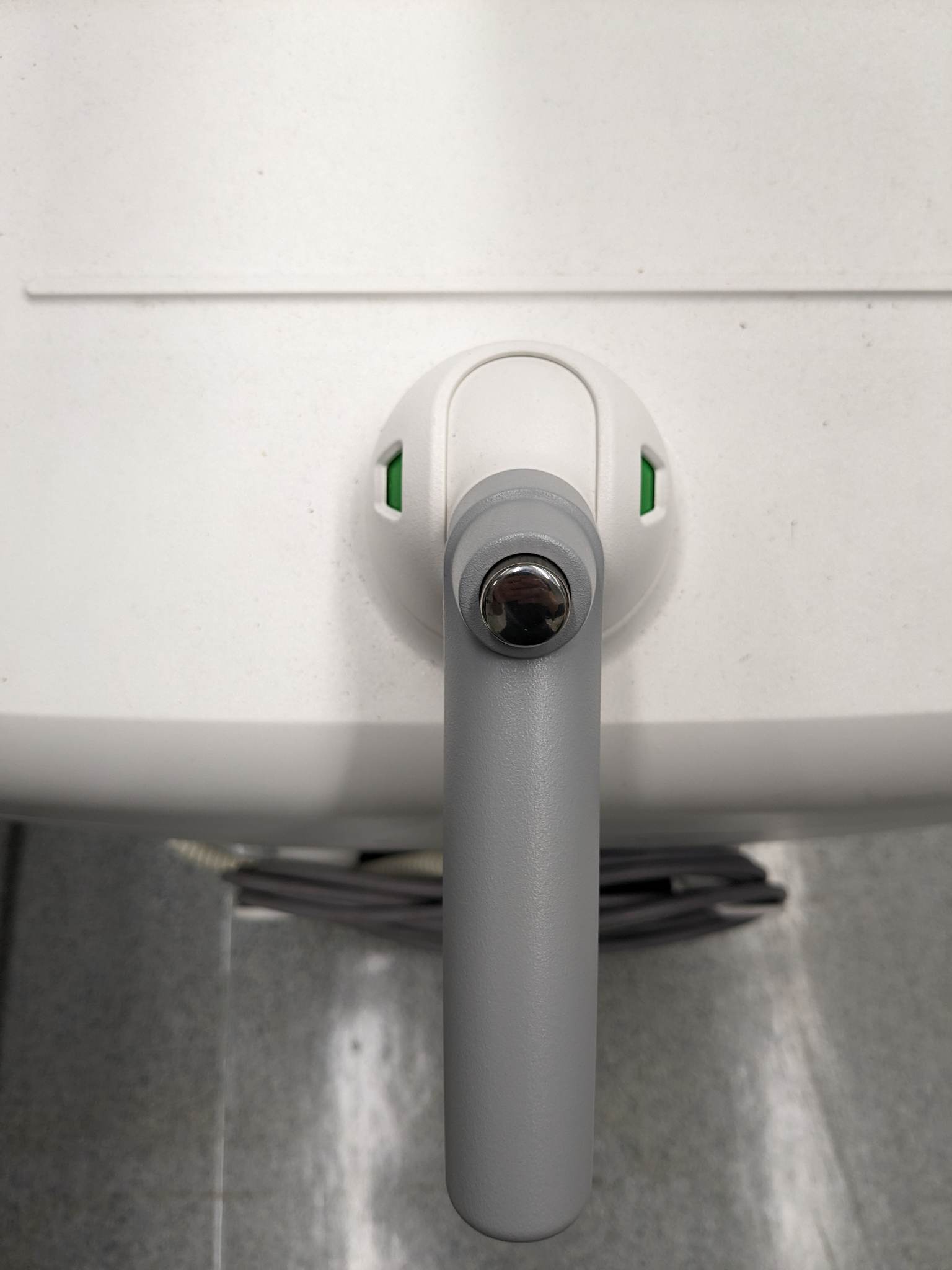

  • Use the button to release the break. The indicator should turn green once the break is released.
  • Adjust the steering lever. The steering lever could be adjusted in three directions.
  • The left image below shows C-Arm in locked parking position, the steering lever is switched to the right so that the wheels are breaked in transverse position. The right image shows unlocked break and the C-arm system is free to move.

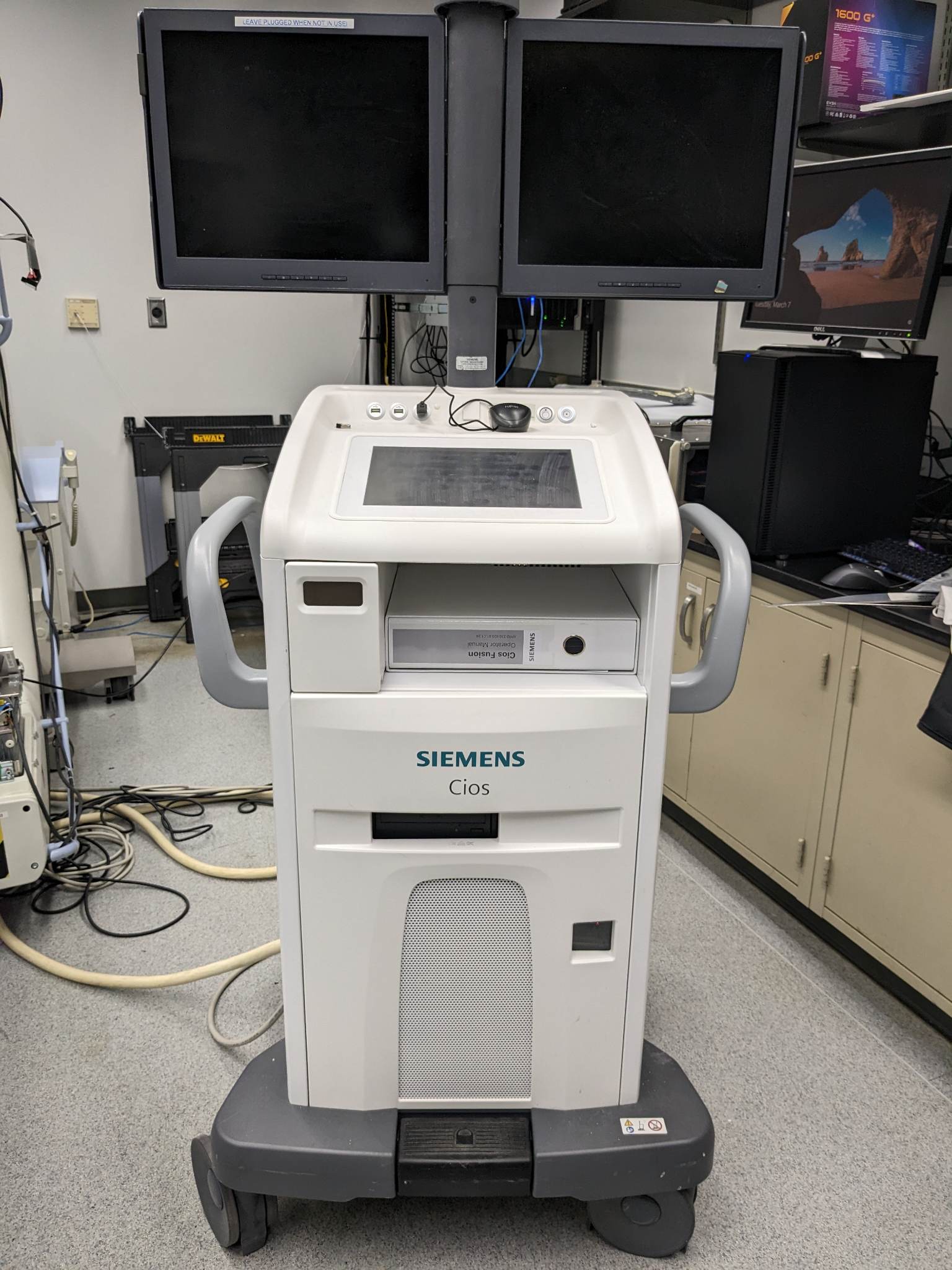

• C-arm monitor trolley

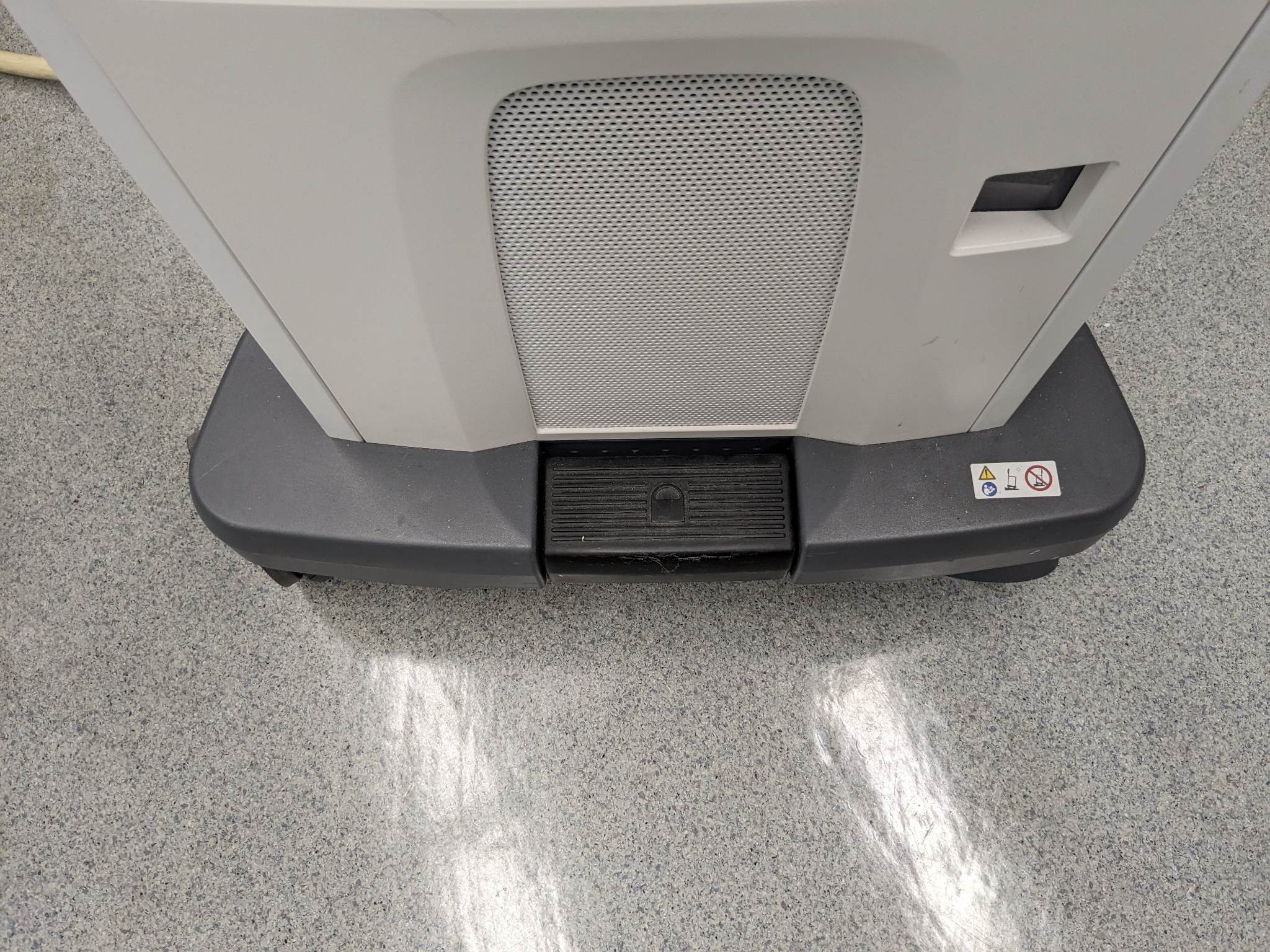

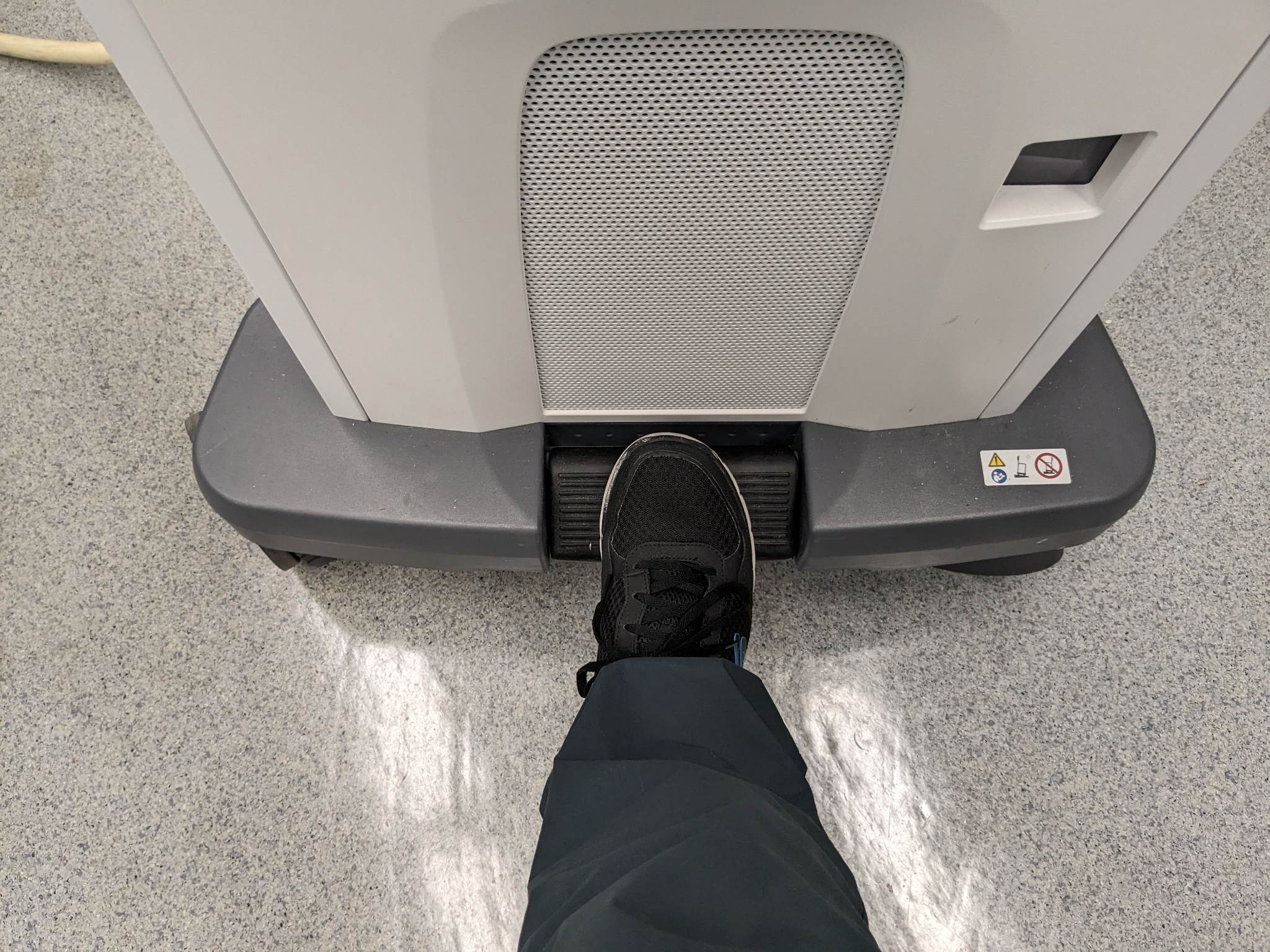

  • The left image below shows C-arm monitor with the break released. Step on the paddle to lock the parking position of the monitor in place, as shown in the right image below.

System Description #

• Adjusting the movement of the C-Arm

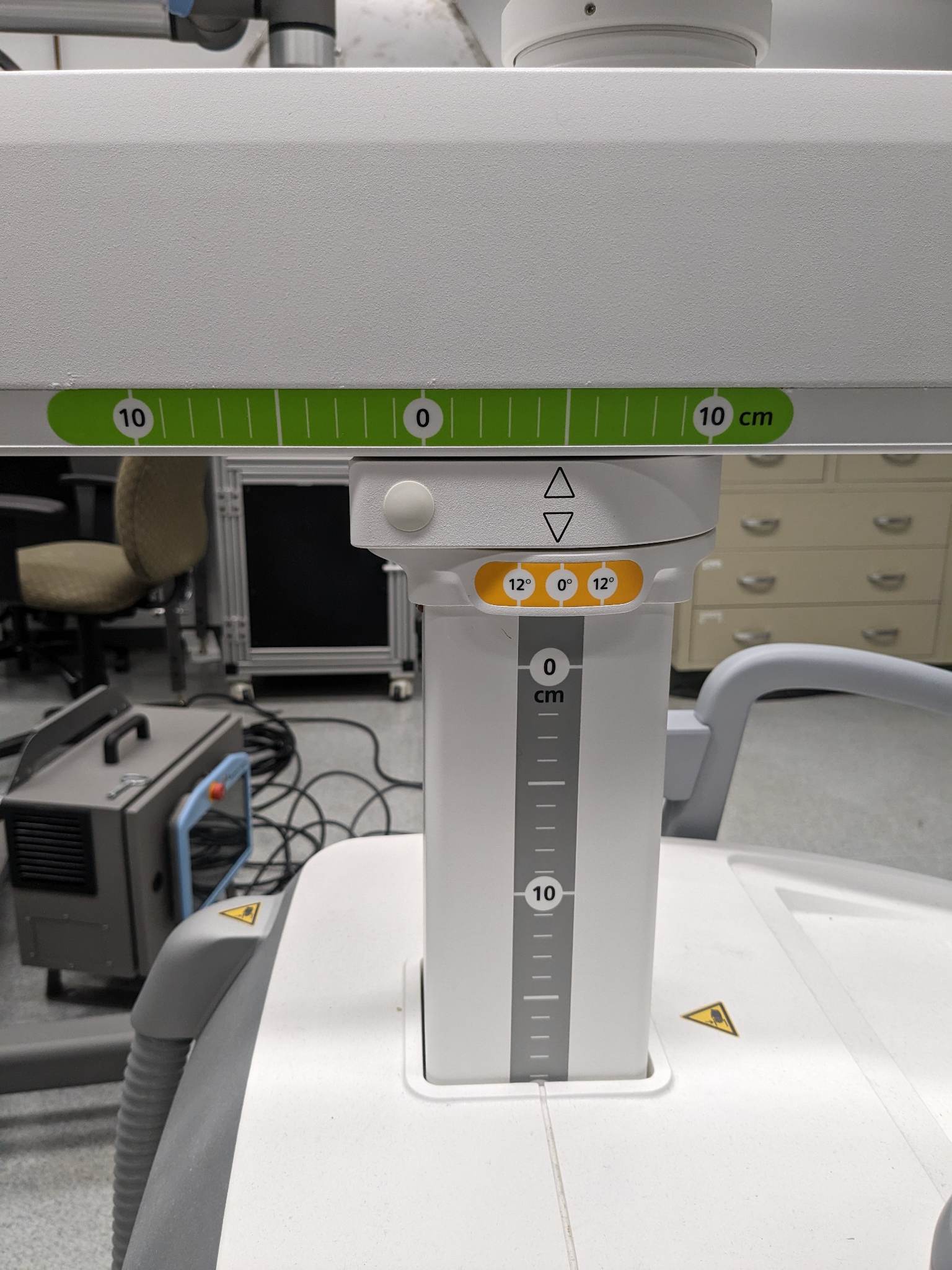

  • Lifting/Lowering the C-Arm
    •

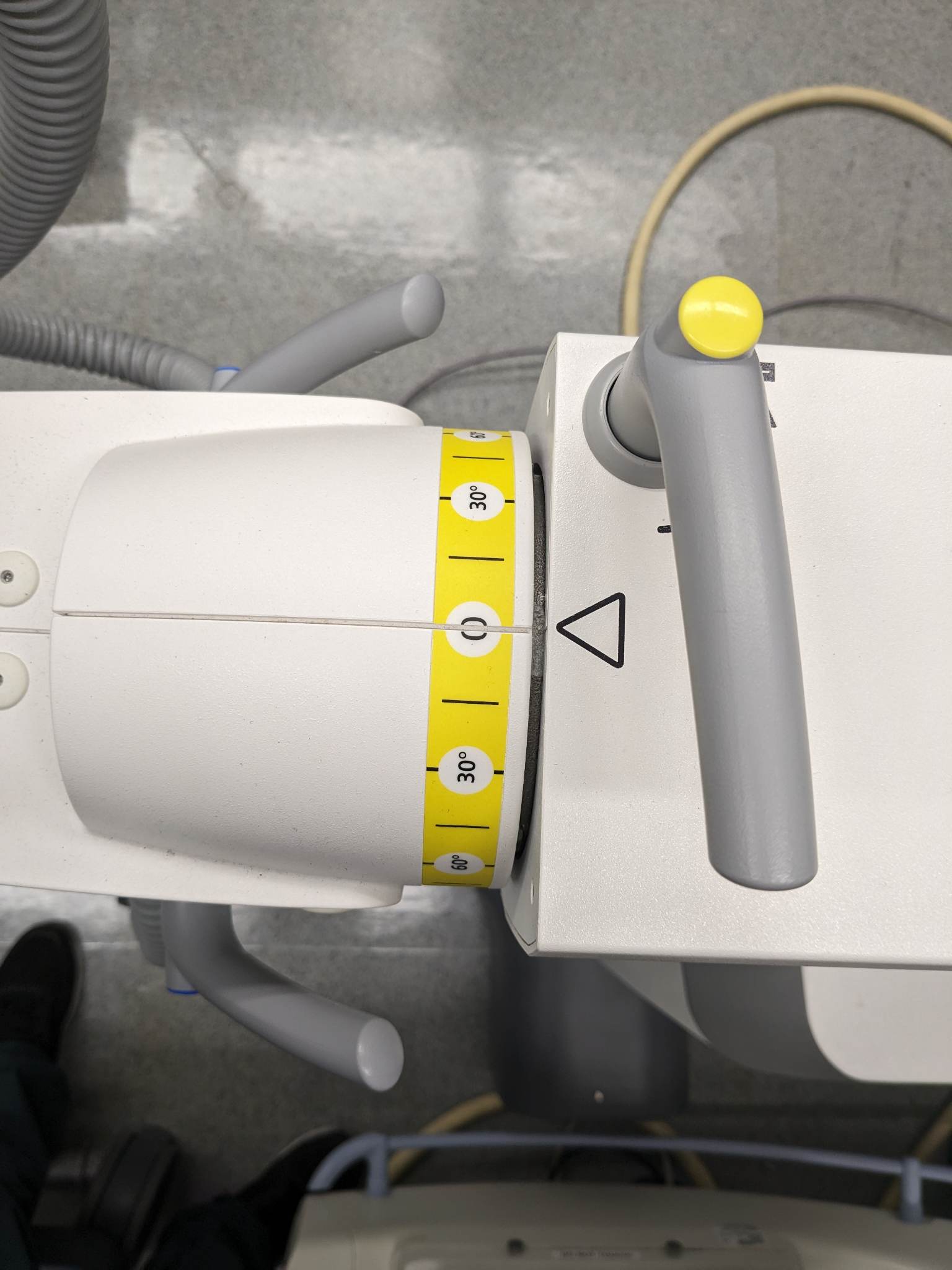

  • Angulating the C-Arm
    • The C-arm could be adjusted in the vertical plane for ±225°
    •

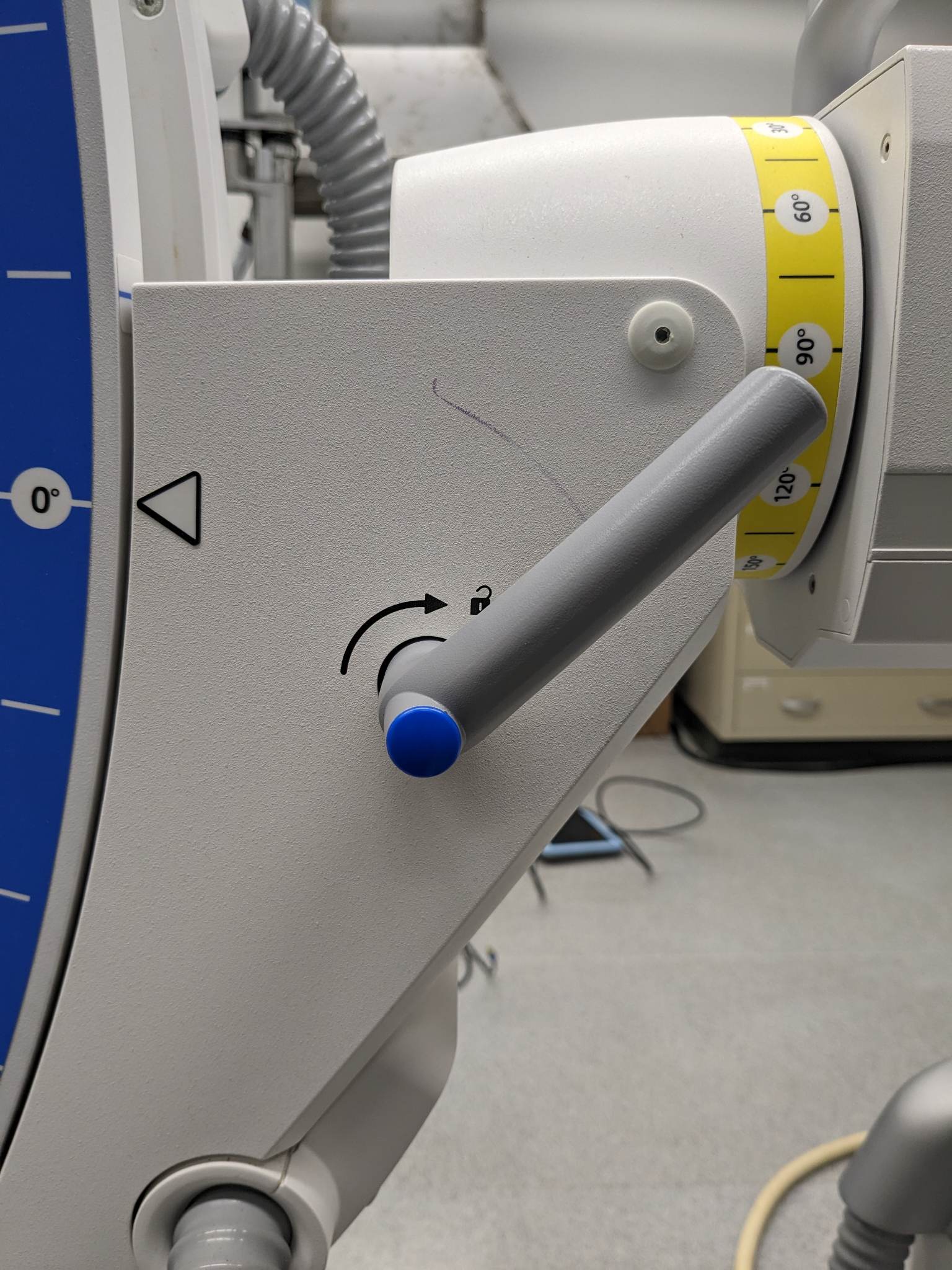

  • Orbiting brake
    • Starting from basic position of 0°, the C-Arm could be swivel by up to +110° or -40° (150° in total).
    •
