Introduction to CMake #

Compiler #

Compilation Process #

Example:

// hellp.cpp

#include <iostream>

using namespace std;

int main(){
    // print message to console
    cout<<"Hello World!"<<endl;
    return 0;
}

If you do:

clang++ hello.cpp

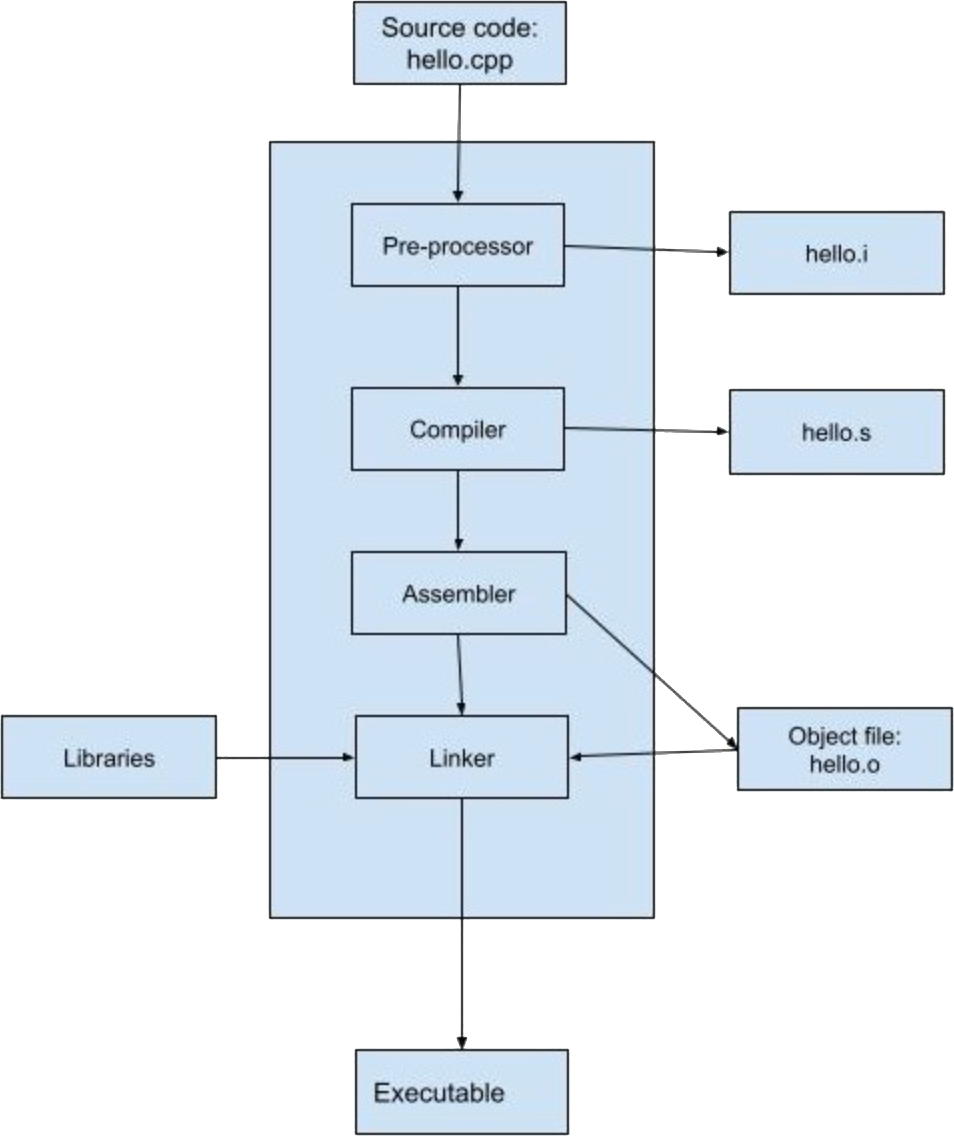

under the hood, this compilation process performs 4 major steps:

Libraries #

a library file is a collection of precompiled code packaged up for reuse by other programs. There are two types of libraries:

• Static
  • Faster, takes up more space (because a copy of static library becomes a part of every executable that uses it), becomes a part of end binary, named as lib*.a. Static libraries are archives just like zip/tar. Static libraries cannot be upgraded easily. To update a static library the entire executable needs to be replaced.
• *Dynamic
  • Slower, can be copied, referenced by a program. Named lib*.so. When you compile a program that uses a dynamic library, the library does not become a part of your executable. It remains a separate unit. Dynamic libraries can be upgraded to a newer version without replacing all the executables that use it.

Declaration and Definition #

A common practice in C++ is to split up declaration and definition into two different source code files: header file and implementation file.

A C++ header file contains only declarations, whereas the implementation file consists of the definitions.

Linking #

Linking maps a function declaration to its compiled implementation, and takes the compiled object files or libraries –> combines them into a single executable. e.g.

clang++ -std=c++17 main.cpp -L . -lfirst -o main

With the -L flag, the linker searches a standard list of directories for the library plus the specified directory here . which means present directory. The -l option adds a library. In this examble we want to include a library called libfirst, so we use the flag -lfirst. At the end, it produces an executable file named main.

Build System #

Build Systems are tools that automate the build process. Make is an example of one of the most frequently used build systems. Make can be a standalone command-line application, but configuring build systems for a large project can be complex. For this, it’s useful to get help from a build generator tool, such as CMake, to generate build files for Make.

Build a CMake Project #

cd <project_folder>
mkdir build
cd build
cmake ..
make

In the above commands you would replace <project_folder> with the name of the home folder where your program files are located.

Basic structure of a CMakeLists.txt file:

#define the version of CMake you are using here 3.1
cmake_minimum_required(VERSION 3.1)
#project name
project(first_project)
#C++ version in use, here 17
set(CMAKE_CXX_STANDARD 17)

#tell CMake where to look for *.hpp ,*.h files
include_directories(include)

#create library "libbigss", this creates libbigss.a
add_library(bigss src/bigss.cpp)

#add executable main, this creates main.o
add_executable(main src/main.cpp)

#tell the linker to bind these object files together and provide with the final executable
target_link_libraries(main bigss)

ROS #

For ROS 1, please refer to catkin_cmake.
For ROS 2, please refer to ament_cmake.
